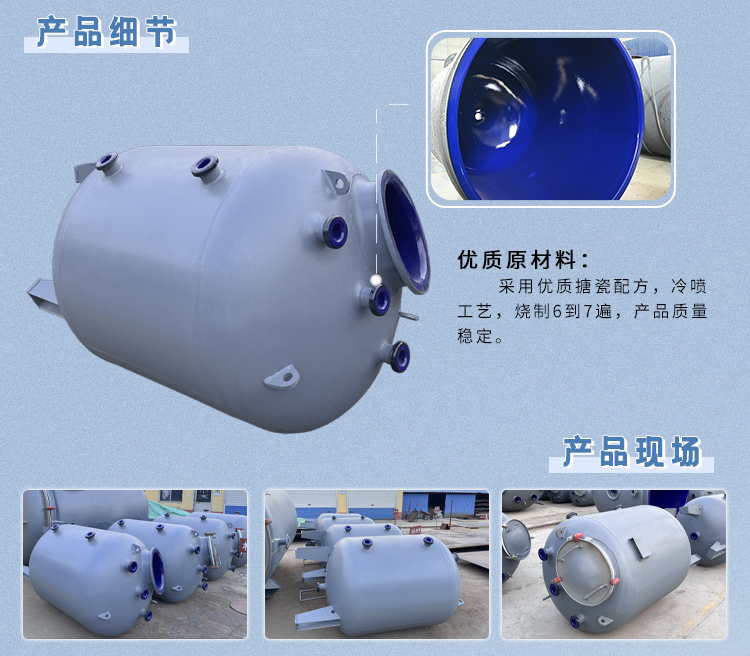

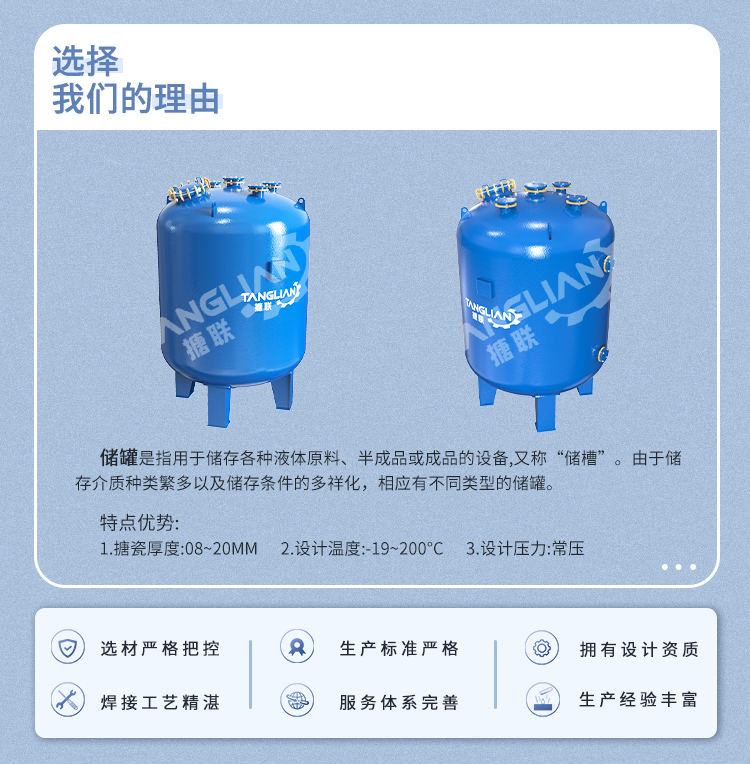

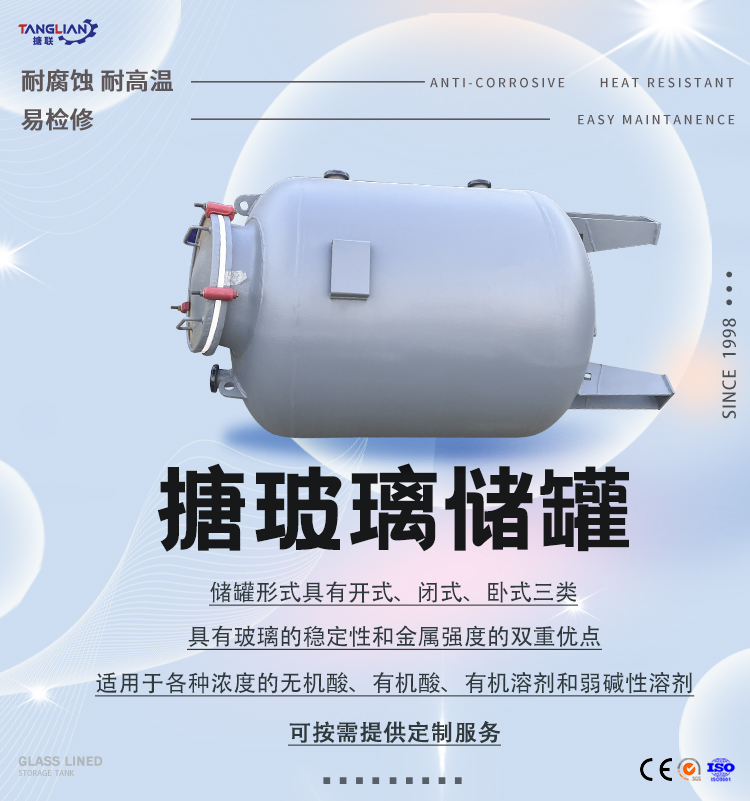

属性名称 | 参数值 |
材质 | 碳钢内搪玻璃 |
设计压力(Mpa) | 0.4/0.6/1.0 |
设计温度(℃) | -19~200 |
搪瓷厚度(mm) | 0.8~2.0 |
公称容积 | 实际容积 | 主要尺寸 | 罐卡规格/数量 | 重量 | ||||||
D | D1 | D2 | H | H1 | H2 | PN0.25 Mpa | PN0.6 | |||
F3000 | 3740 | 1600 | 600 | 1120 | 2740 | 300 | 2290 | BM12/24 | AM12/24 | 1820 |
F5000 | 5980 | 1600 | 600 | 1120 | 3710 | 300 | 3260 | BM12/28 | AM12/36 | 2452 |
F6300 | 7030 | 1750 | 600 | 1225 | 3810 | 300 | 3280 | BM12/28 | AM12/36 | 3200 |
F8000 | 8910 | 1900 | 600 | 1330 | 4110 | 300 | 3530 | BM12/28 | AM12/36 | 3780 |
F10000 | 11140 | 2200 | 700 | 1540 | 4020 | 345 | 3370 | BM12/36 | AM12/32 | 4640 |
F12500 | 13870 | 2400 | 700 | 1680 | 4180 | 345 | 3530 | BM12/36 | AM12/32 | 5860 |
F16000 | 17760 | 2400 | 700 | 1680 | 5040 | 345 | 4390 | BM12/36 | AM12/32 | 7120 |
F20000 | 22217 | 2600 | 700 | 1820 | 5369 | 345 | 4789 | BM12/36 | AM12/32 | 8490 |
F30000 | 33301 | 3000 | 700 | 2100 | 5995 | 345 | 5415 | BM12/36 | AM12/32 | 11880 |
F50000 | 51366 | 3000 | 700 | 2100 | 8565 | 345 | 7985 | BM12/36 | AM12/32 | 16800 |
公称容积 | 管口公称直径 DN | |||||
a | b | c | d | g | h | |
F3000 | 125 | 70 | 70 | 70 | 125 | - |
F5000 | 125 | 70 | 70 | 70 | 125 | - |
F6300 | 125 | 70 | 70 | 70 | 125 | - |
F8000 | 125 | 80 | 70 | 70 | 125 | - |
F10000 | 125 | 80 | 70 | 70 | 125 | - |
F12500 | 125 | 80 | 70 | 70 | 125 | - |
F16000 | 125 | 80 | 70 | 70 | 125 | - |
F20000 | 125 | 80 | 70 | 70 | 125 | - |
F30000 | 125 | 80 | 70 | 70 | 125 | - |
F50000 | 125 | 80 | 70 | 70 | 125 | - |
